產品概述
DL型立式多級離心泵是我公司根據我國對高層建筑給排水及從臥式多級離心泵基礎上進行優化設計和制造的，該型泵由于采用了高效節能的優秀水力模型,因此具有效率高,性能范圍廣等優點,更好地滿足了用戶的使用要求.另外,本型泵在結構上采用了立式、分段形式，且運轉安全、平穩、壽命長、占地面積小、安全維修方便。

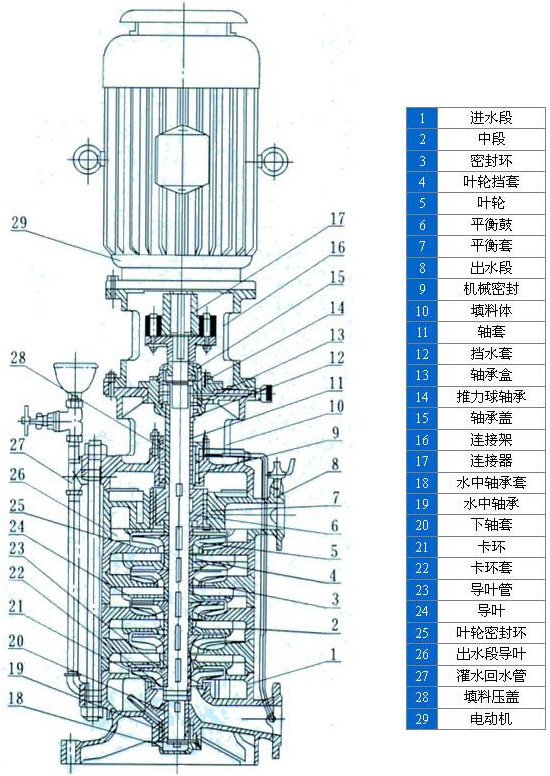

產品特點
安裝方便，方式靈活�？捎羞M(jìn)出口成0°C，90°C，180°C，270°C等四種方式。流量：5-300m3/h 揚程：20-240m轉速1450r/min
產品用途
DL、DLR型立式多級離心泵適用于工業和城市給排水、高層建筑增壓、遠距離送水、采暖、浴室、鍋爐冷暖水循環增壓、空調制冷系統送水及設備配套等場合。DL型介質使用溫度不超過80°C，DLR型介質使用溫度不超過120°C。
| 型號 | 級數 | 流量Q | 總揚程H(m) | 轉速n(r/min) | 功率N(Kw) | 效率η(%) | 吸程Hs(m) | 必需汽蝕余量(NPSH)r(m) | ||
| m3/h | l/s | 軸功率 | 電機功率 | |||||||
| 50DL | 2 |
9.0 |
2.5 3.5 4.5 |
26.6 24.4 21.2 |
1450 | 1.30 1.55 1.80 |
3 | 50 54 52 |
7.9 7.6 7.2 |
2.58 2.66 3.16 |
| 3 | 9.0 12.6 16.2 |
2.5 3.5 4.5 |
39.9 36.6 31.8 |
1.96 2.33 2.70 |
3 | 50 54 52 |
7.9 7.6 7.2 |
2.58 2.66 3.16 |
||
| 4 | 9.0 12.6 16.2 |
2.5 3.5 4.5 |
53.2 48.8 42.4 |
2.61 3.10 3.60 |
4 | 50 54 52 |
7.9 7.6 7.2 |
2.58 2.66 3.16 |
||
| 5 | 9.0 12.6 16.2 |
2.5 3.5 4.5 |
66.5 61 53 |
3.26 3.88 4.50 |
5.5 | 50 54 52 |
7.9 7.6 7.2 |
2.58 2.66 3.16 |
||
| 6 | 9.0 12.6 16.2 |
2.5 3.5 4.5 |
79.8 73.2 63.6 |
3.91 4.65 5.49 |
5.5 | 50 54 52 |
7.9 7.6 7.2 |
2.58 2.66 3.16 |
||
| 7 | 9.0 12.6 16.2 |
2.5 3.5 4.5 |
93.1 85.4 74.2 |
4.56 5.43 6.30 |
7.5 | 50 54 52 |
7.9 7.6 7.2 |
2.58 2.66 3.16 |
||
| 8 | 9.0 12.6 16.2 |
2.5 3.5 4.5 |
106.4 97.6 84.8 |
5.22 6.20 7.20 |
7.5 | 50 54 52 |
7.9 7.6 7.2 |
2.58 2.66 3.16 |
||
| 9 | 9.0 12.6 16.2 |
2.5 3.5 4.5 |
119.7 109.8 95.4 |
5.87 6.98 8.10 |
11 | 50 54 52 |
7.9 7.6 7.2 |
2.58 2.66 3.16 |
||
| 10 | 9.0 12.6 16.2 |
2.5 3.5 4.5 |
133 122 106 |
6.52 7.75 9.00 |
11 | 50 54 52 |
7.9 7.6 7.2 |
2.58 2.66 3.16 |
||
| 型號 | 級數 | 流量Q |
總揚程H(m) | 轉速n(r/min) | 功率N(Kw) | 效率η(%) | 吸程Hs(m) | 必需汽蝕余量(NPSH)r(m) | ||
| m3/h | l/s | 軸功率 | 電機功率 | |||||||
| 65DL | 2 | 18 30 35 |
5 8.33 9.72 |
37 32 29 |
1450 | 3.24 4.22 4.6 |
5.5 | 56 62 60 |
7.8 7.6 7.5 |
2.41 2.82 3.03 |
| 3 | 18 30 35 |
5 8.33 9.72 |
55.5 48 43.5 |
4.86 6.33 6.9 |
7.5 | 56 62 60 |
7.8 7.6 7.5 |
2.41 2.82 3.03 |
||
| 4 | 18 30 35 |
5 8.33 9.72 |
74 64 58 |
6.48 8.44 9.2 |
11 | 56 62 60 |
7.8 7.6 7.5 |
2.41 2.82 3.03 |
||
| 5 | 18 30 35 |
5 8.33 9.72 |
92.5 80 72.5 |
8.1 10.55 11.5 |
15 | 56 62 60 |
7.8 7.6 7.5 |
2.41 2.82 3.03 |
||
| 6 | 18 30 35 |
5 8.33 9.72 |
111 96 87 |
6.72 12.66 13.8 |
15 | 56 62 60 |
7.8 7.6 7.5 |
2.41 2.82 3.03 |
||
| 7 | 18 30 35 |
5 8.33 9.72 |
129.5 112 101.5 |
11.34 14.77 16.1 |
18.5 | 56 62 60 |
7.8 7.6 7.5 |
2.41 2.82 3.03 |
||
| 8 | 18 30 35 |
5 8.33 9.72 |
148 128 116 |
12.96 16.88 18.4 |
22 | 56 62 60 |
7.8 7.6 7.5 |
2.41 2.82 3.03 |
||
| 9 | 18 30 35 |
5 8.33 9.72 |
166.5 144 130.5 |
14.58 18.99 20.7 |
22 | 56 62 60 |
7.8 7.6 7.5 |
2.41 2.82 3.03 |
||
| 10 | 18 30 35 |
5 8.33 9.72 |
185 160 145 |
16.2 21.1 23 |
30 | 56 62 60 |
7.8 7.6 7.5 |
2.41 2.82 3.03 |
||
| 型號 | 級數 | 流量Q |
總揚程H(m) | 轉速n(r/min) | 功率N(Kw) | 效率η(%) | 吸程Hs(m) | 必需汽蝕余量(NPSH)r(m) | ||
| m3/h | l/s | 軸功率 | 電機功率 | |||||||
| 80DL | 2 | 32.4 50.4 65.16 |
9 14 18.1 |
43.2 40 34.2 |
1450 | 6.28 7.84 9.12 |
11 | 60.7 70 66.5 |
8.1 8 7.9 |
2.16 2.49 2.82 |
| 3 | 32.4 50.4 65.16 |
9 14 18.1 |
64.8 60 51.3 |
9.42 11.76 13.68 |
15 | 60.7 70 66.5 |
8.1 8 7.9 |
2.16 2.49 2.82 |
||
| 4 | 32.4 50.4 65.16 |
9 14 18.1 |
86.4 80 68.4 |
12.56 15.68 18.24 |
22 | 60.7 70 66.5 |
8.1 8 7.9 |
2.16 2.49 2.82 |
||
| 5 | 32.4 50.4 65.16 |
9 14 18.1 |
108 100 85.5 |
15.70 19.60 22.80 |
30 | 60.7 70 66.5 |
8.1 8 7.9 |
2.16 2.49 2.82 |
||
| 6 | 32.4 50.4 65.16 |
9 14 18.1 |
129.6 120 102.6 |
18.84 23.52 27.36 |
30 | 60.7 70 66.5 |
8.1 8 7.9 |
2.16 2.49 2.82 |
||
| 7 | 32.4 50.4 65.16 |
9 14 18.1 |
151.2 140 119.7 |
21.98 27.44 31.92 |
37 | 60.7 70 66.5 |
8.1 8 7.9 |
2.16 2.49 2.82 |
||
| 8 | 32.4 50.4 65.16 |
9 14 18.1 |
172.8 160 136.8 |
25.12 31.36 36.48 |
45 | 60.7 70 66.5 |
8.1 8 7.9 |
2.16 2.49 2.82 |
||
| 9 | 32.4 50.4 65.16 |
9 14 18.1 |
194.4 180 153.9 |
28.26 35.28 41.04 |
45 | 60.7 70 66.5 |
8.1 8 7.9 |
2.16 2.49 2.82 |
||
| 10 | 32.4 50.4 65.16 |
9 14 18.1 |
216 200 171 |
31.40 39.20 45.60 |
55 | 60.7 70 66.5 |
8.1 8 7.9 |
2.16 2.49 2.82 |
||
| 型號 | 級數 | 流量Q |
總揚程H(m) | 轉速n(r/min) | 功率N(Kw) | 效率η(%) | 吸程Hs(m) | 必需汽蝕余量(NPSH)r(m) | ||
| m3/h | l/s | 軸功率 | 電機功率 | |||||||
| 100DL | 2 | 72 100 126 |
20 27.8 35 |
43.4 40 34 |
1450 | 13.1 15.14 16.67 |
18.5 | 65 72 70 |
7.6 7.2 6.7 |
2.83 3.53 4.40 |
| 3 | 72 100 126 |
20 27.8 35 |
65.1 60 51 |
19.65 22.72 25.01 |
30 | 65 72 70 |
7.6 7.2 6.7 |
2.83 3.53 4.40 |
||
| 4 | 72 100 126 |
20 27.8 35 |
86.8 80 68 |
26.2 30.28 33.34 |
37 | 65 72 70 |
7.6 7.2 6.7 |
2.83 3.53 4.40 |
||
| 5 | 72 100 126 |
20 27.8 35 |
108.5 100 85 |
32.75 37.86 41.68 |
45 | 65 72 70 |
7.6 7.2 6.7 |
2.83 3.53 4.40 |
||
| 6 | 72 100 126 |
20 27.8 35 |
130.2 120 102 |
39.3 45.39 45.82 |
55 | 65 72 70 |
7.6 7.2 6.7 |
2.83 3.53 4.40 |
||
| 7 | 72 100 126 |
20 27.8 35 |
151.9 140 119 |
25.85 53.0 58.35 |
75 | 65 72 70 |
7.6 7.2 6.7 |
2.83 3.53 4.40 |
||
| 8 | 72 100 126 |
20 27.8 35 |
173.6 160 136 |
52.4 60.57 66.68 |
75 | 65 72 70 |
7.6 7.2 6.7 |
2.83 3.53 4.40 |
||
| 9 | 72 100 126 |
20 27.8 35 |
195.3 180 153 |
58.95 68.14 75.02 |
90 | 65 72 70 |
7.6 7.2 6.7 |
2.83 3.53 4.40 |
||
| 10 | 72 100 126 |
20 27.8 35 |
217 200 170 |
65.5 75.71 83.35 |
90 | 65 72 70 |
7.6 7.2 6.7 |
2.83 3.53 4.40 |
||
| 型號 | 級數 | 流量Q |
總揚程H(m) | 轉速n(r/min) | 功率N(Kw) | 效率η(%) | 必需汽蝕余量(NPSH)r(m) | ||
| m3/h | l/s | 軸功率 | 電機功率 | ||||||
| 150DL | 2 | 120 160 200 |
33.3 44.4 55.6 |
53 50 44 |
1450 | 24.1 28.7 32.8 |
37 | 72 76 73 |
3.1 3.5 3.8 |
| 3 | 120 160 200 |
33.3 44.4 55.6 |
79.5 75 66 |
36.1 43.0 49.2 |
55 | 72 76 73 |
3.1 3.5 3.8 |
||
| 4 | 120 160 200 |
33.3 44.4 55.6 |
106 100 88 |
48.1 57.3 65.7 |
75 | 72 76 73 |
3.1 3.5 3.8 |
||
| 5 | 120 160 200 |
33.3 44.4 55.6 |
133 125 110 |
60.1 71.7 82.1 |
90 | 72 76 73 |
3.1 3.5 3.8 |
||
| 6 | 120 160 200 |
33.3 44.4 55.6 |
159 150 132 |
72.2 86.0 98.5 |
110 | 72 76 73 |
3.1 3.5 3.8 |
||
| 7 | 120 160 200 |
33.3 44.4 55.6 |
186 175 154 |
84.2 100 115 |
132 | 72 76 73 |
3.1 3.5 3.8 |
||
| 8 | 120 160 200 |
33.3 44.4 55.6 |
212 200 176 |
96.2 115 132 |
132 | 72 76 73 |
3.1 3.5 3.8 |
||
| 9 | 120 160 200 |
33.3 44.4 55.6 |
239 225 198 |
108 129 148 |
160 | 72 76 73 |
3.1 3.5 3.8 |
||
